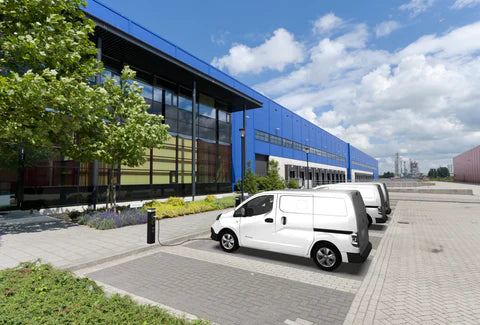

How Do Electric Vehicle Charging Stations Work?
If it wasn’t evident by the expansive electric vehicle charging station facilities being built, electric vehicles are becoming the first choice for consumers.
In 2023, electric car sales were found to be 3.5 million higher than the year prior. This significant rise only continued with over a quarter of a million registrations of EVs being made a week, more than the annual total ten years earlier.
This rapid popularity is evidence of a market favouring sustainable and efficient modes of transportation.
But, as the zero-tailpipe emissions and lower operating costs drive consumer interest, the widespread adoption of EVs hinges on the availability and accessibility of electric vehicle charging station infrastructure.
So, how do electric vehicle charging stations work, and what is the future of this fundamental part of the EV system?
How Do Electric Vehicle Charging Stations Work?
Key Components of an Electric Vehicle Charging Station
An electric vehicle charging station is a device that supplies electrical energy to recharge an EV's battery.
Four simple steps, broken down by their key components, provide drivers with the much-needed juice for their EV batteries.
-
Power Source
The charging station draws power from the electrical grid or, in some cases, from renewable energy sources like solar or wind.
-
Charging Cable and Connector
The charging cable, equipped with a compatible connector, is plugged into the EV's charging port, establishing a physical connection between the station and the vehicle.
-
Control Systems
Advanced control systems within the charging station monitor the charging process, regulate power flow, and communicate with the EV. These systems ensure safe and efficient charging.
-
Payment Systems
To facilitate convenient and secure transactions, charging stations often incorporate payment systems that allow users to pay for charging sessions using various methods, such as credit cards, mobile payments, or charging memberships.
The Technology of Electric Vehicle Charging Station
Expanding electric vehicle charging station infrastructure is essential for providing consumers with the means to overcome range anxiety, a major concern for potential EV buyers.
But what is the technology behind an electric vehicle charging station, and is there an opportunity to improve it to reach the demand?
Types of Electric Vehicle Charging Stations:
There are three primary types of EV charging stations, each offering different charging speeds and use cases.
Level 1 (AC) Charging:
This is the slowest charging method, typically used for home charging or charging at workplaces with limited power outlets. It's best suited for overnight charging or occasional top-ups.
Level 2 (AC) Charging
Faster than Level 1, Level 2 charging is typical in workplaces, public parking lots, and multi-unit dwellings. It's suitable for overnight charging or charging during work hours.
DC Fast Charging
The fastest charging method, DC Fast Charging, is ideal for long-distance travel. These types of electric vehicle charging stations are often located along highways and in urban areas, allowing for quick charging sessions.
Electric Vehicle Charging Station Protocols:
Electric vehicles and charging stations must adhere to compatible protocols to ensure seamless charging. Three primary protocols currently dominate the market…
CCS (Combined Charging System)
This versatile protocol is widely used in Europe and North America. It supports AC and DC charging, making it a flexible choice for various charging scenarios.
CHAdeMO
CHAdeMO is a dedicated DC fast-charging protocol primarily used in Japan and other Asian markets. It offers rapid charging capabilities for long-distance travel.
GB/T
This protocol is predominantly used in China. It supports both AC and DC charging, catering to the specific needs of the Chinese market.
The Operational Process of the Electric Vehicle Charging Station
How EV Charging Works
Before the charging process begins, the electric vehicle and the charging station must establish a secure communication link.
This involves a handshake process where the vehicle and station exchange information, authenticate each other, and negotiate the charging parameters, such as the desired charging rate and the amount of energy to be transferred.
Once the communication is established, the charging station delivers electrical energy to the vehicle's battery.
Power is transferred through the charging cable and connector, which are designed to handle the vehicle's specific voltage and current requirements. However, the charging rate is not always consistent, as the type of electric vehicle charging station may not complement the vehicle's capabilities.
Monitoring and Control
Electric vehicle charging station control systems continuously monitor various parameters throughout the charging process. This step is vital to protecting the battery's health within the EV and ensuring user safety.
This is done by tracking the battery’s current charge level to keep safety consistent across the charging parameters.
The temperature of the battery and the electric vehicle charging station is also monitored to prevent overheating, whilst thermal protection and fault detection maintain safeguarding efforts.
The control systems also communicate with the vehicle to provide real-time updates on the charging status, estimated completion time, and potential issues.
The Future of the Electric Vehicle Charging Station
Across the world, countries are making changes to their government policy in favour of EVs.
The US offers tax credits and other incentives to boost EV sales, whilst the EU has implemented policies to promote EV purchases to reach their reduced emission standards.
In the UK, several changes have been made to government policy to support the sale of EVs and achieve the goal of phasing out petrol and diesel vehicles by 2035.
Significant investments have been made to expand the UK's electric vehicle charging station infrastructure, with a target of 300,000 public chargers by 2030. These investments, alongside financial incentives such as grants and tax breaks, have been introduced to encourage the purchase of electric vehicles.
But with the Zero Emission Vehicle (ZEV) mandate requiring car manufacturers to consistently increase EV sales up to 100% by 2023, what challenges will the UK have to navigate to ensure adequate electric vehicle charging station facilities are available?
The Challenges of Electric Vehicle Charging Station Expansion
The initial cost of installing charging infrastructure, as well as the ongoing maintenance expenses, can be significant. This can deter businesses and governments from investing in charging stations, especially in areas with lower EV adoption rates.
Beyond the cost of electric vehicle charging station expansion, resolving the interoperability issues is likely a priority.
Different charging standards can create compatibility problems between vehicles and charging stations, resulting in patchy service and an inconvenience that could restrict the government's ability to reach its goals.
This convenience is key, yet while the number of public charging stations is increasing, many areas, particularly rural regions, still need more adequate infrastructure.
Several electric vehicle charging station infrastructure requirements must be met to address these challenges and facilitate the transition to electric vehicles.
-
Power Grid Capacity
The electrical grid must handle the increased demand for EV charging. Upgrading and implementing innovative grid technologies can ensure a reliable and efficient power supply.
-
Installation and Maintenance
Proper installation and regular maintenance of charging stations are crucial to ensure their reliability and safety. This includes factors like cable management, weatherproofing, and regular inspections.
-
Network Connectivity
Reliable network connectivity is essential for remote monitoring, control, and payment processing. This allows for real-time tracking of charging status, troubleshooting issues, and enabling secure transactions.
Exciting EV charging developments are closer than you may think
Exciting EV Charging Developments to Look Forward to
There is building pressure to develop smart changing technologies to improve electric vehicle charging station infrastructure availability.
From optimised charging schedules to wireless charging, improving convenience is key to boosting EV sales.
Perfecting charging schedules will reduce peak demand on the electricity grid, leading to more efficient and cost-effective charging, whilst wireless charging technology eliminates the need for physical cables, making the charging process even more convenient.
Work is also being done to explore vehicle-to-grid (V2G) technology. V2G technology enables electric vehicles to feed energy back into the grid during periods of low demand, helping to stabilise the grid and even providing additional revenue for EV owners.
There are also advancements in battery technology, focused on developing lighter and more energy-dense batteries to boost vehicle range and performance.
